    General Purpose Inverters

    • Industry Requirements
    • Industry Application Solutions
    • Product Selection Recommendation

    Industry Requirements

    General purpose inverters are widely used power electronic devices in the industrial control field. They convert the input AC power into DC power with adjustable frequency and voltage, which is then supplied to the motor to achieve precise and continuous control of the speed of AC motors. General purpose inverters feature a wide speed control range, precise control, significant energy-saving effects, excellent starting performance, and various control modes, such as V/f control, vector control, and direct torque control. They are suitable for applications such as fans, pumps, conveyors, elevators, and many other devices, making them an essential component in industrial automation systems.

    Industry Application Solutions

    Topology Structure

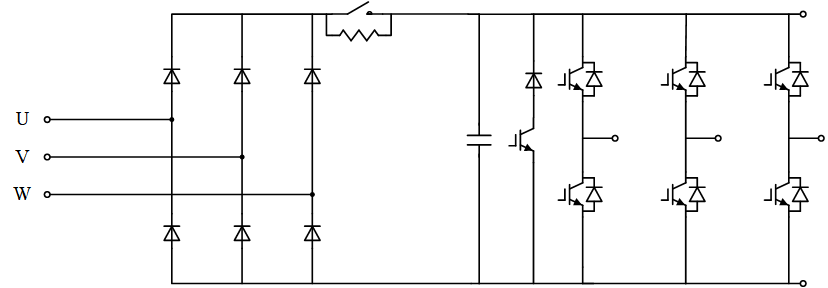

    General Purpose Inverters Topology Structure


    Product Selection Recommendation

    Type Voltage(V) Current(A) Packages Topology
    MMG10CB120XB6TC 1200 10 GCB XB
    MMG15CB120XB6TC 1200 15 GCB XB
    MMG25CE120XB6TC 1200 25 GCE XB
    MMG35CE120XB6TC 1200 35 GCE XB
    MMG25HD120XB6TC 1200 25 GHD XB
    MMG35HD120XB6TC 1200 35 GHD XB
    MMG35HD120XT6TC 1200 35 GHD XT
    MMG50HD120XB6TC 1200 50 GHD XB
    MMG50HD120XT6TC 1200 50 GHD XT
    MMG25H120XB6TC 1200 25 GH XB
    MMG40H120XB6TC 1200 40 GH XB
    MMG50W120XB6TC 1200 50 GW XB
    MMG75W120XB6TC 1200 75 GW XB
    MMG75WD120XB6TC 1200 75 GWD XB
    MMG100WD120XB6TC 1200 100 GWD XB
    MMG150WJ120XB6T7 1200 150 GWJ XB
    MMG75H120X6TC 1200 75 GH X
    MMG75W120X6TC 1200 75 GW X
    MMG100W120X6TC 1200 100 GW X
    MMG150W120X6TC 1200 150 GW X
    MMG75J120UZ6TC 1200 75 GJ UZ
    MMG75J120U6TC 1200 75 GJ U
    MMG100J120UZ6TC 1200 100 GJ UZ
    MMG150J120UZ6TC 1200 150 GJ UZ
    MMG75S120B6TC 1200 75 GS B
    MMG100S120B6TC 1200 100 GS B
    MMG150S120B6TC 1200 150 GS B
    MMG150D120B6TC 1200 150 GD B
    MMG200Q120B6TC 1200 200 GQ B
    MMG200D120B6TC 1200 200 GD B
    MMG300D120B6TC 1200 300 GD B
    MMG450D120B6TC 1200 450 GD B
    MMG300WB120B6TC 1200 300 GWB B
    MMG450WB120B6TC 1200 450 GWB B
    MMG600WB120B6T6 1200 600 GWB B
    MMG25CB120XB6T7 1200 25 GCB XB
    MMG75HE120XB6T7 1200 75 GHE XB
    MMG150WJ120XB6T7 1200 150 GWJ XB
    MMD70E160X 1600 70 DE X
    MMD100E160X 1600 100 DE X
    MMD100EB160X 1600 100 DEB X
    MMD150F160X 1600 150 DF X
    MMD150FB160X 1600 150 DFB X
    MMD200F160X 1600 200 DF X
    MMD200FB160X 1600 200 DFB X
    MMD250F160X 1600 250 DF X
    MMD250FB160X 1600 250 DFB X
    MMD50L160X 1600 50 DL X
    MMD90A160B 1600 90 DA B
    MMD130A160B 1600 130 DA B
